◆Features:

•Support MegaPirateNG / ArduPlaneNG / ArduCopterNG / MultiWii / AeroQuad firmware

•8-axis motor output

•8 input channels

•4 serial ports (S0~S3)

•2/3-axis gimbal system

•6 Analog port for extend device (A0~A5)

•I2C port for extend sensor or device

•Separate 3.3V and 5V 500mA LDO voltage regulator

•ATMega 2560 Microcontroller

•MPU6050 6 axis gyro/accel with Motion Processing Unit

•HMC5883L 3-axis digital magnetometer

•MS5611-01BA01 highprecision altimeter

•FT232RQ USB-UART chip and Micro USB receptacle

•On board logic level converter

•Dimension: 50mmX50mm

•45x45mm mounting holes

•Height: 11.6mm

•Weight: 14.2g

•Hole diameter: 3mm

•Match the standard of RoHS

◆Package content

•AIO PRO FC x 1

•3Pin to 1Pinx3 cable 100mm x 3

•3Pin to 3Pin cable 100mm x 1

•Molex 1.25mm 4Pin cable 100mm x1

•Molex 1.25mm 6Pin cable 100mm x2

•Molex 1.25mm 8Pin cable 100mm x1

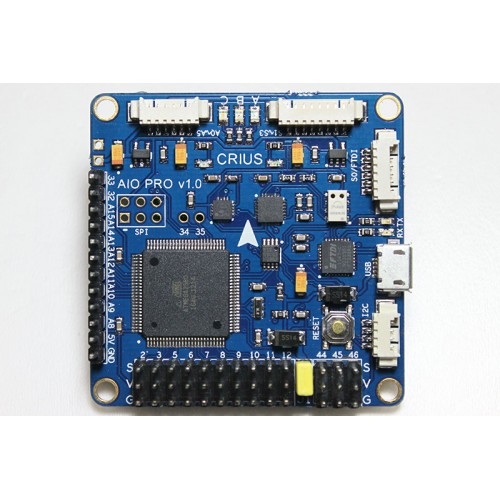

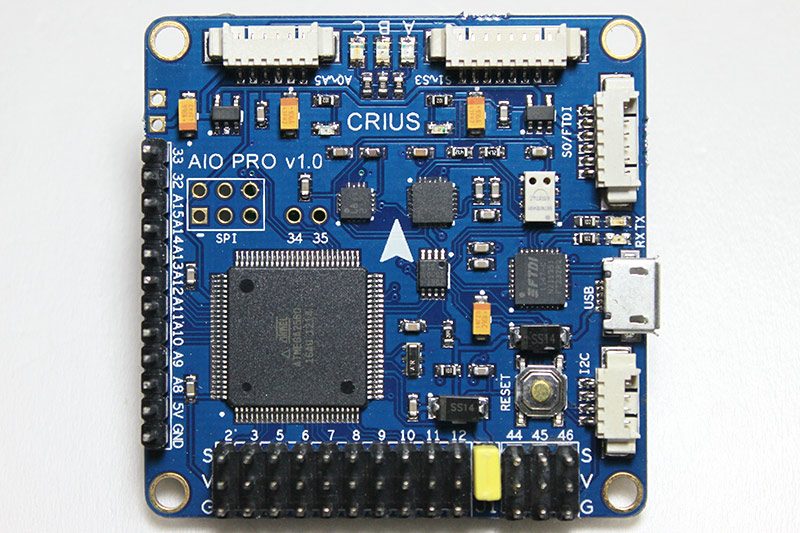

CRIUS ALL IN ONE PRO v1.0 Multi Rotor Flight Controller

Qty

$88.00
