• Spring RC 360 Degree Continuous Rotation Robot Servo SM-S4306R

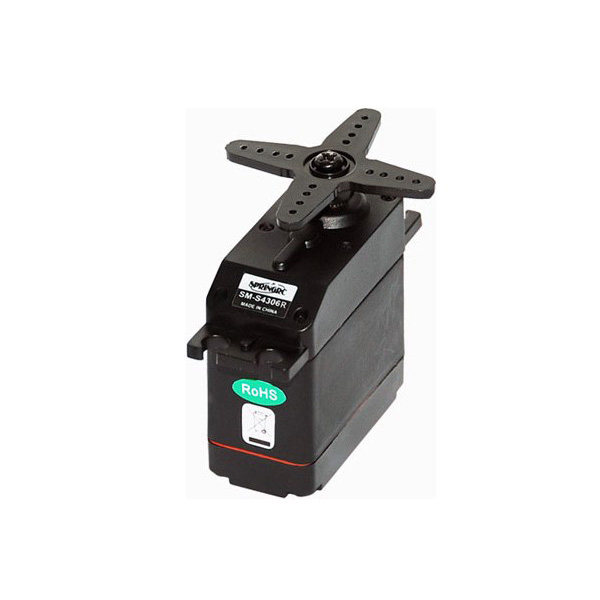

Spring RC 360 Degree Continuous Rotation Robot Servo SM-S4306R


Description:


Item Name:360 Degree Continuous Rotation Robot Servo

Model:SM-S4306R

Working Voltage: 4.8-7.2V

Working Current: 0.1-1.2 A

Torque: 5kg-cm @ 4.8V ; 6.2kg-cm @6V

Average Speed: 55 rpm-6V

Rotation Range: 0- 360

Working Temperature: 0~55

Size:40.2x 20.2 x 43.2mm

Weight: About 41g

Connection Pin Out

Brown - GND

Interface:JR Interface

Red-VCC (4.8-7.2V)


Features:


1.The SM-S4306R is a double bearing, high torque 360 degree rotation servo;

2.This motor is standard servo interface with PWM signal, Power and GND;

3.Suitable for mobile robot driven motor;

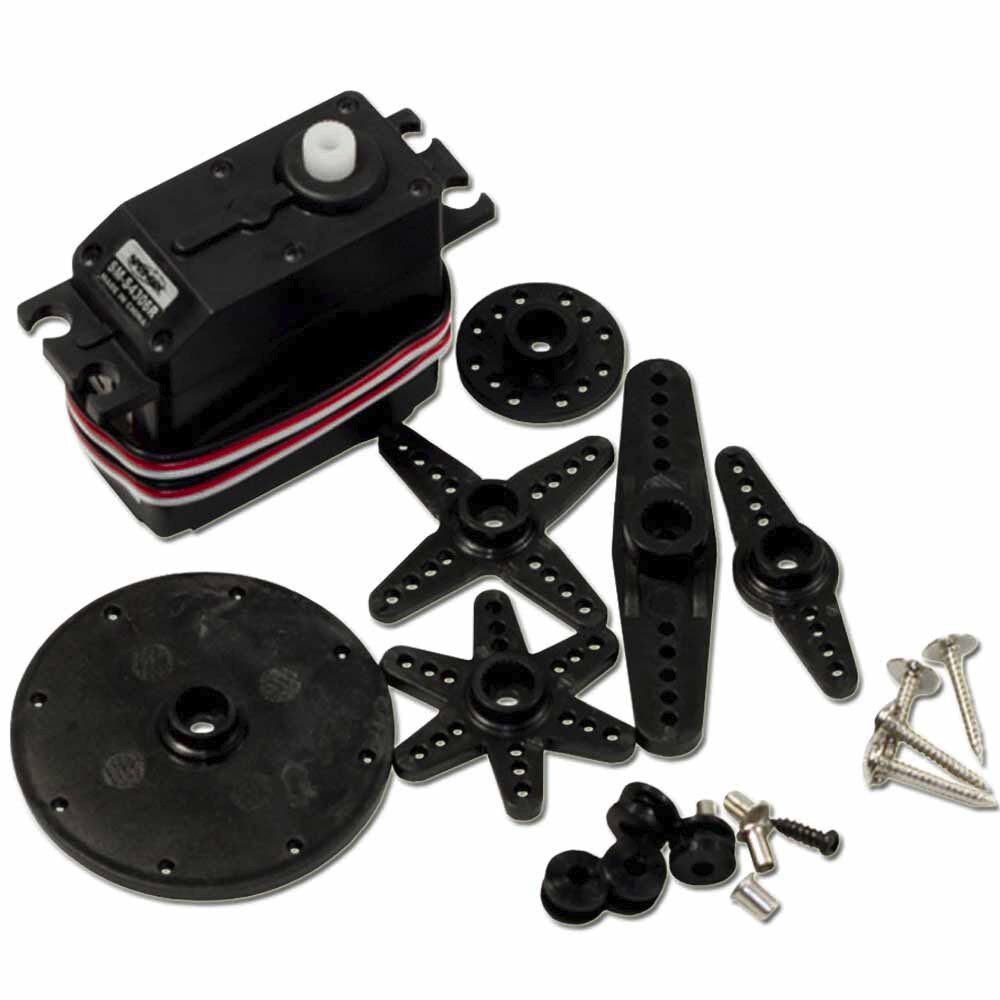

Package Included:


1 x Robot Servo SMS4306R




Spring RC 360 Degree Continuous Rotation Robot Servo SM-S4306R

  • Product Code: SERVO
  • Availability: In Stock
  • $9.99
