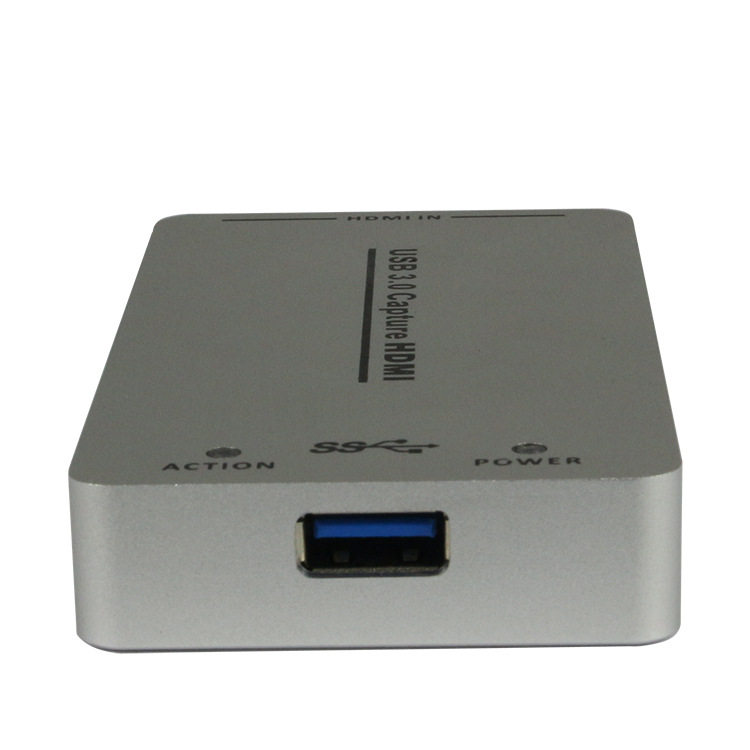

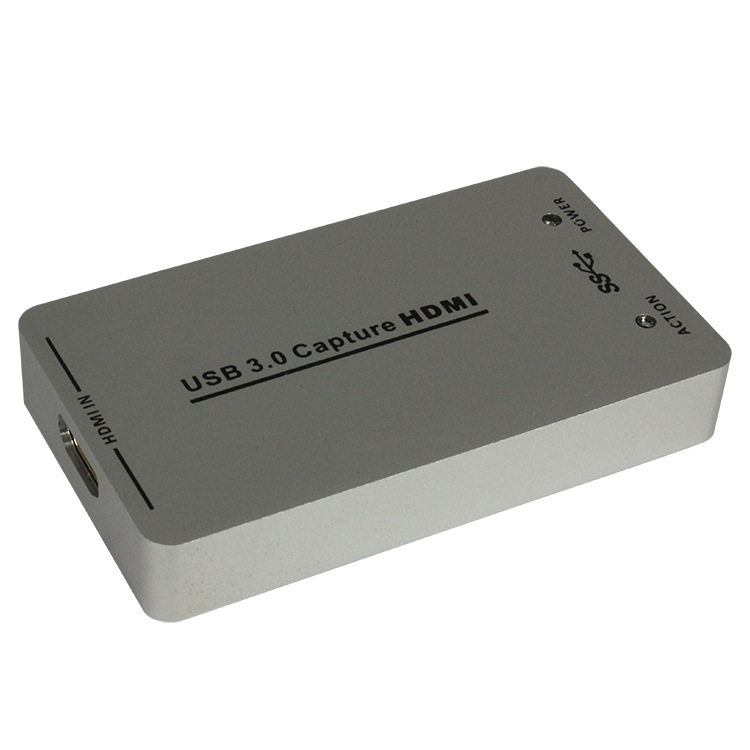

HDMI to USB3.0 Video Capture Dongle

Introduction

HDMI to USB3.0 Video Capture Dongle, it is easy to carry, have a superior performance,superior compatibility, simple installation and many other features. It can capture one HDMI 1080p60 input and output signal; compatible with Windows, Linux, Mac OS X and USB3.0 interface, Compatible with many USB 3.0 chipset (Intel, Renesas,ASMedia, Fresco Logic), compatible with PCIe Gen1.1 x1 expansion via USB 3.0interface; The HDMI video capture meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.

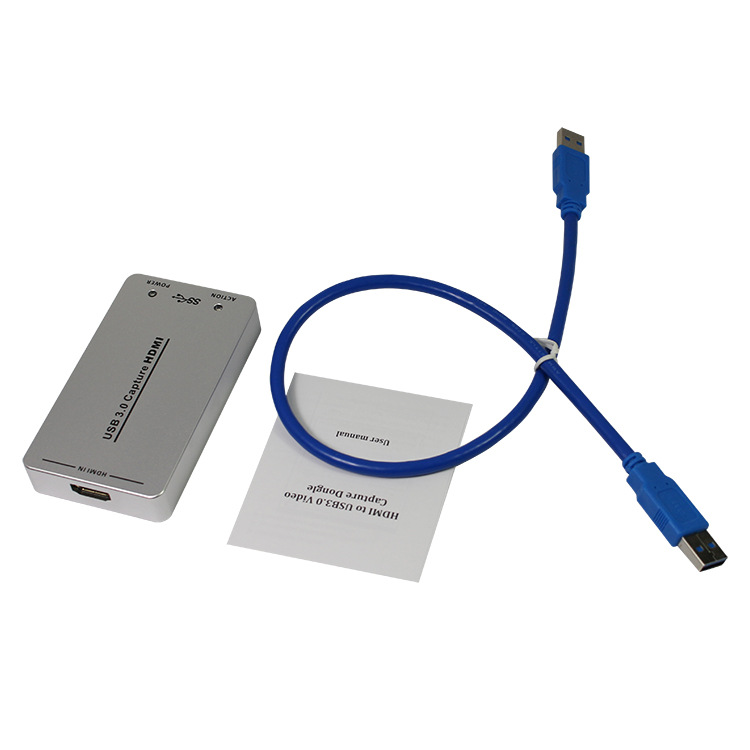

Package

HDMI to USB3.0 Video Capture Dongle---------------------------------1Pcs

USB3.0 Cable-----------------------------------------------------------------1Pcs

User manual------------------------------------------------------------------1pcs

Feature

Ø It doesn’t need to install a driver, and it is truly PnP.

Ø It is compatible with Windows, Linux, OS X operating systems

Ø USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0

Ø The process of video and audio is done by the dongle and will not occupy the CPU.

Ø It can capture one single channel HD HDMI video signals.

Ø It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.

Ø The input and output video signal can reach 1080p/60 Hz.

Ø It is compatible with UVC video capture and YUV 422 video output.

Specification

Host Interface       USB3.0, *300-350MB/s, USB2.0, *40MB/s

Input Interface      HDMI interface

HDMI  Input Formats  480i,480p,576i,576p,720p50,720p60,1080i50,1080i60,

                       1080p24/25/30/50/60;
